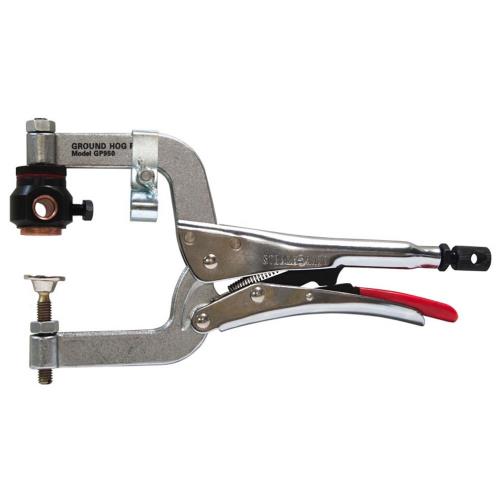

Stronghand Ground Hog Clamp - 450A
Grounding Clamps
High clamping pressure improves arc stability and reduces power consumption.
The groove design on the copperhead seals out weld spatter and reduces particle buildup. Side screw provides a secure cable connection. Ground Hog body rotates for cable positioning.
• Rated at 450 AMPS @ 60% duty cycle (with 2/0 cable)
• Prevents current restriction and allows complete current transfer.
• Controls the electrical current by isolating the contact surface and the cable connection.
• Improve arc stability and cable life, and reduce power consumption.
Specifications:
• Amperage / Cable Size: 450A / 2/0 – 0.427?
• Throat Depth: 89 mm
• Max. Capacity: 64 mm
• Tapped Hole: M10
• Clamping Pressure: 180 kg
• OAL: 280 mm
• Weight: 1.1 kg
