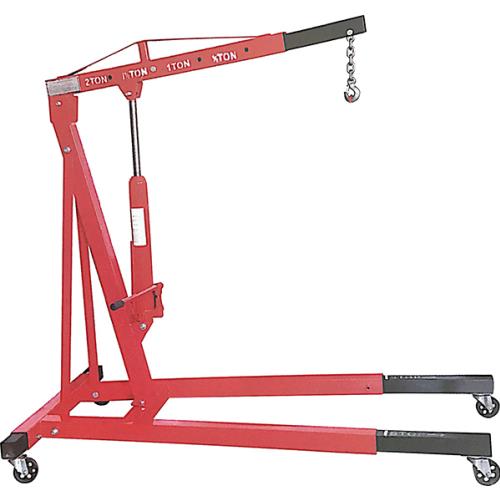

ProEquip Workshop Engine Crane 2 Ton
For raising, lowering and transporting of automotive engines and other heavy shop loads. Includes long reach ram, chain and hook with retractable legs.
Features:
• Heavy duty welded construction with rugged reinforced tubular steel.
• Metered control release valve for lowering boom at a precisely-controlled rate of speed.
• Special 8 Ton hydraulic long reach ram is equipped with a patented built-in by-pass mechanism.
Specification:
• Maximum Capacity: 2 Ton (1800kg)
• Adjustable Reinforced Boom – 1/2 Ton, 1 Ton, 1-1/2 Ton & 2 Ton
• Boom Length – 1/2 Ton (1830mm), 1 Ton (1600mm), 1-1/2 Ton (1380mm) & 2 Ton (1149mm)
• Max. Hook Height – 1/2 Ton (2180mm), 1 Ton (2045mm), 1-1/2 Ton (1900mm) & 2 Ton (1760mm)
• Lifting Range – 0 to 2180mm (at 1/2 Ton Lift)
• 4 cast iron swivel wheel castors
• Clevis grab hook with safety latch
• Base Length: 1560-240mm
• Base Width (Front): 800-990mm
• Base Width (Rear): 695-1200mm
Manufactured to ANSI Specification. Approved to ASME PALD-2009.
