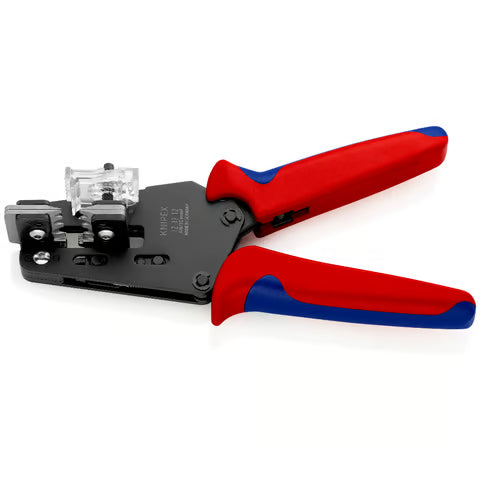

Precision Insulation Stripper (4.0 - 10.0mm2)

Precision Insulation Stripper (4.0 - 10.0mm2)

Precision Insulation Stripper

With adapted blades 4/6/10mm²

• Form-fit stripping of difficult-to-remove insulating materials made of PTFE, silicone, Radox®, Kapton® and rubber; multi-layer too

• A second pair of blades holds the remaining insulation reliably in place

• Replaceable shaped blade adapted precisely to the respective conductor cross-section

• With length stop for constant stripping length during repetitive work

• For solar cables, specially adapted to multi-layered and RADOX® insulations

• With additional cable support for a better centering of multi-layer insulated conductors in the stripping profiles

Technical Attributes:

• Article No.: 12 12 12

• EAN: 4003773073758

• pliers: burnished

• handles: with multicomponent handles

• Weight: 450 g

• Dimensions: 195 x 107 x 33 mm

• REACH compliant: contains SVHC

• RoHS compliant: not applicable

• Stripping capacities in square millimetres: 4.0 / 6.0 / 10.0 mm²

• AWG: 12 / 10 / 8

Documents:

Data Sheet
