ITM Electric Hoist-415V-3 Ton-3 Meter Lift

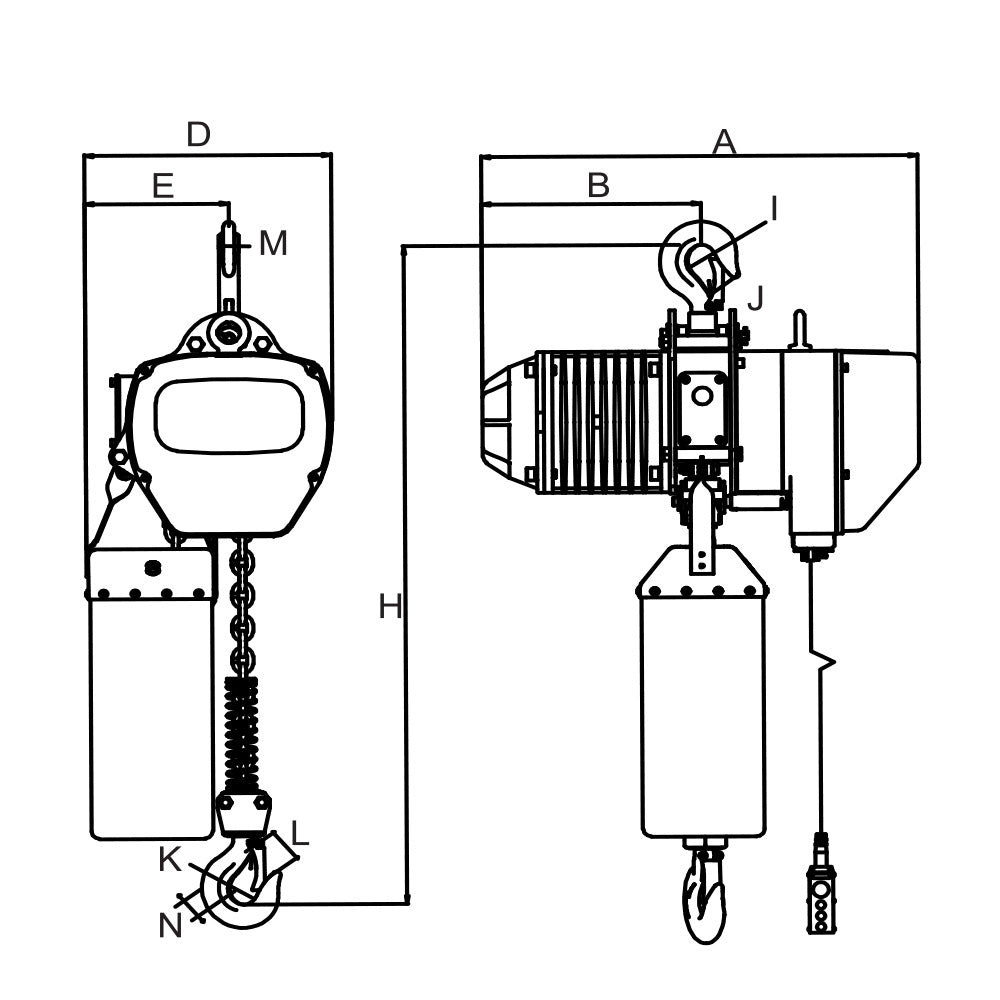

ITM Electric Hoist-415V-3 Ton-3 Meter Lift Features • Japanese technology with dual braking system to ensure safe and reliable operation • Dual Speed • Compact and light weight design • Weight overload limiter for safety • Dual-gear drive system providing smooth and quiet operation • Three phase, 415V motor • Upper and lower limit switches to prevent chain runout • Chain length can be altered by ITM to your required length • Tested & certified to AS 1418.2 • Test certificate & user manual supplied • Replacement Chain 7.1mm TM9810-01607-1 • Replacement Chain 11.2mm TM9810-04011-2 Specifications • Rated Capacity: 3 Tonne • Standard Lift: 3m • Running Test Load: 37.5kN • Motor: 3000W 415V 3P • No. of Chain Drops: 1 • Chain Type: Grade 80 11.2mm • Lift Speed: 5.4 & 1.8m/min • Net Weight: 122kg • Extra Weight Per Metre Of Extra Lift: 2.8kg Dimensions (mm) • A: 670 • B: 313 • D: 430 • E: 265 • H: 845 • I: 58 • J: 47 • K: 58 • L: 47 • M: 36 • N: 36
