ITM Electric Hoist-415V-1 Ton-6 Meter Lift

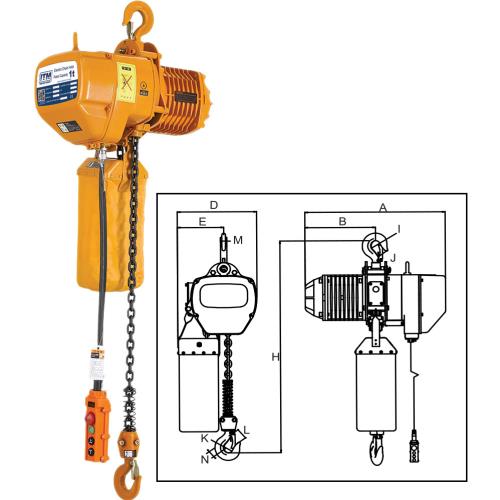

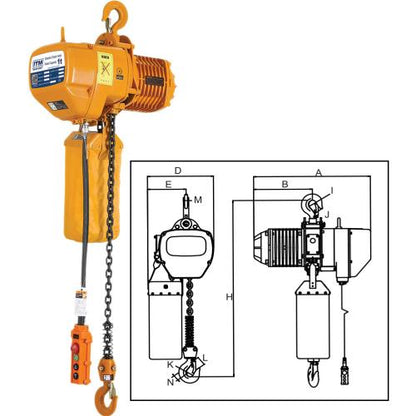

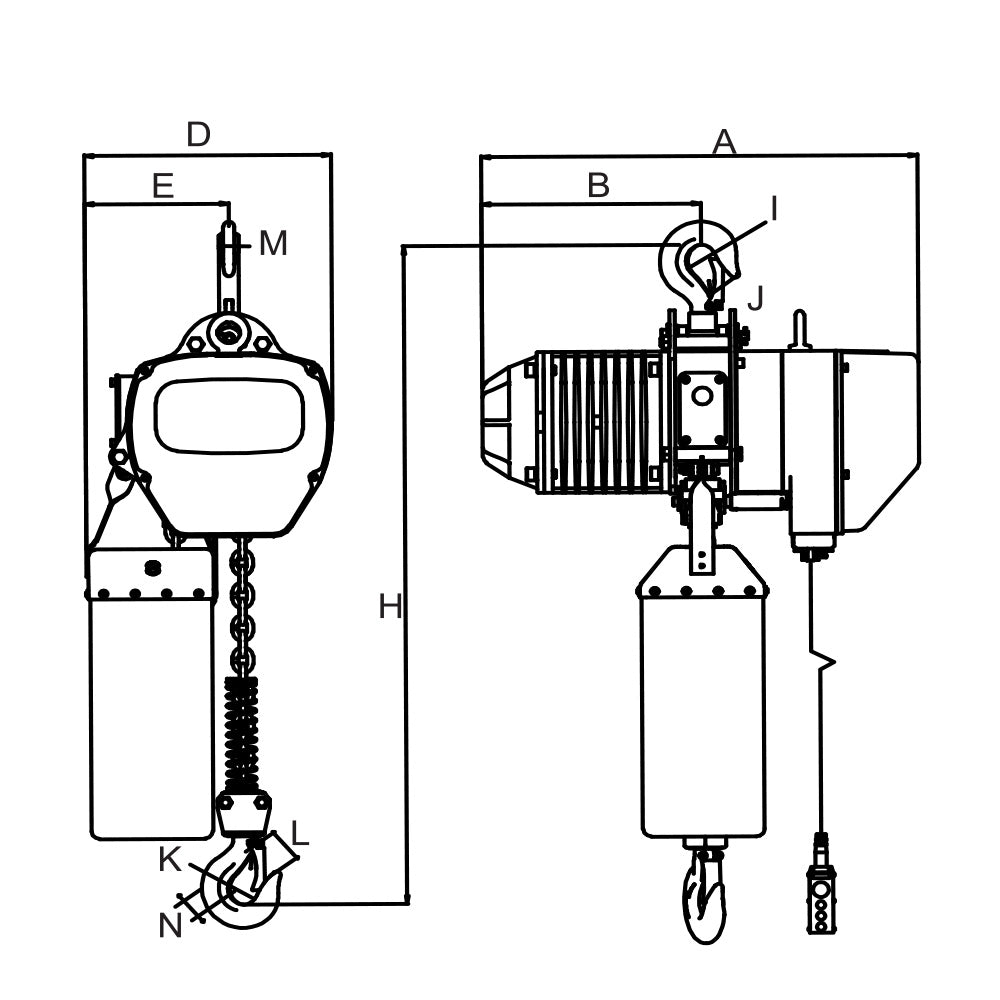

ITM Electric Hoist-415V-1 Ton-6 Meter Lift Features • Japanese technology with dual braking system to ensure safe and reliable operation • Dual Speed • Compact and light weight design • Weight overload limiter for safety • Dual-gear drive system providing smooth and quiet operation • Three phase, 415V motor • Upper and lower limit switches to prevent chain runout • Chain length can be altered by ITM to your required length • Tested & certified to AS 1418.2 • Test certificate & user manual supplied • Replacement Chain 7.1mm TM9810-01607-1 • Replacement Chain 11.2mm TM9810-04011-2 Specifications • Rated Capacity: 1 Tonne • Standard Lift: 6m • Running Test Load: 12.5kN • Motor: 1800W 415V 3P • No. of Chain Drops: 1 • Chain Type: Grade 80 7.1mm • Lift Speed: 6.9 & 2.3m/min • Net Weight: 68kg • Extra Weight Per Metre Of Extra Lift: 1.1kg Dimensions (mm) • A: 582 • B: 280 • D: 300 • E: 176 • H: 650 • I: 40 • J: 31 • K: 40 • L: 31 • M: 22 • N: 22
