ITM Concrete Lifting Clutch Panel Lifter 5T
Features
• Specifically designed for lifting precast concrete elements with an embedded pin
• Easily engages under load, ensuring proper connection
• Simple clutch release when lifting completed
• Available in working load limits ranging from 1.3t to 20t
• Tested and certified to AS 3850.1

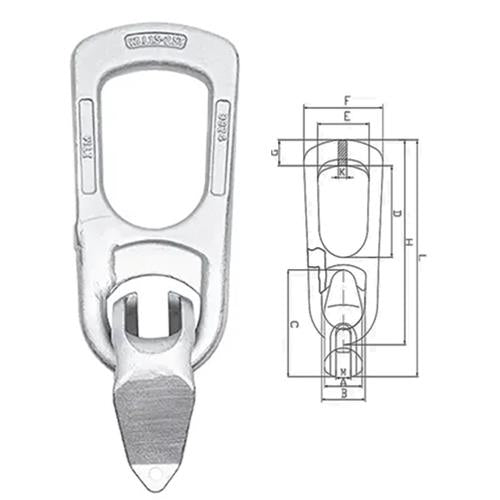

Specifications
• W.L.L. (t): 5
• B.L. (t): 20
• Dimension A (mm): 55
• Dimension B (mm): 70
• Dimension C (mm): 133
• Dimension D (mm): 88
• Dimension E (mm): 69
• Dimension F (mm): 110
• Dimension H (mm): 242
• Dimension M (mm): 22
• Dimension L (mm): 282
• Dimension G (mm): 35
• Dimension K (mm): 18
• Weight (kg): 3.24
