ITM Concrete Lifting Clutch Panel Lifter 20T
Features
• Specifically designed for lifting precast concrete elements with an embedded pin
• Easily engages under load, ensuring proper connection
• Simple clutch release when lifting completed
• Available in working load limits ranging from 1.3t to 20t
• Tested and certified to AS 3850.1
Specifications
• W.L.L. (t): 20
• B.L. (t): 8

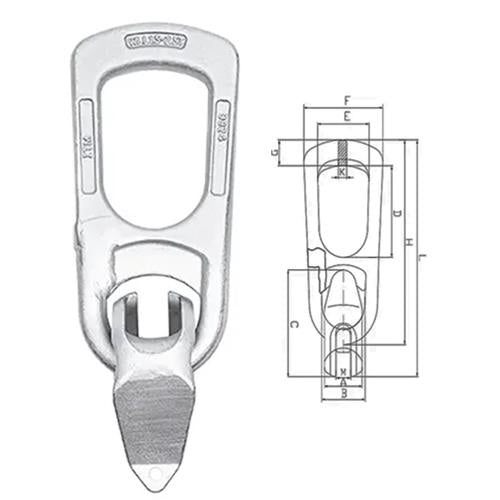

• Dimension A (mm): 110
• Dimension B (mm): 115
• Dimension C (mm): 224
• Dimension D (mm): 133.5
• Dimension E (mm): 107.5
• Dimension F (mm): 182
• Dimension H (mm): 437
• Dimension M (mm): 42
• Dimension L (mm): 497
• Dimension G (mm): 77
• Dimension K (mm): 40
• Weight (kg): 20.39
