ITM Concrete Lifting Clutch Panel Lifter 1.3T
Features
• Specifically designed for lifting precast concrete elements with an embedded pin
• Easily engages under load, ensuring proper connection
• Simple clutch release when lifting completed
• Available in working load limits ranging from 1.3t to 20t
• Tested and certified to AS 3850.1

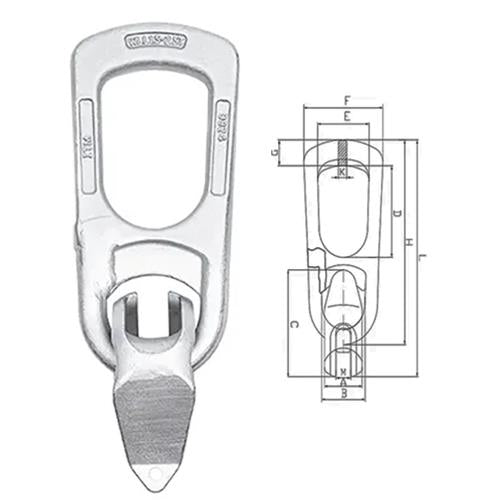

Specifications
• W.L.L. (t): 1.3
• B.L. (t): 5.2
• Dimension A (mm): 33
• Dimension B (mm): 42
• Dimension C (mm): 80.4
• Dimension D (mm): 70.5
• Dimension E (mm): 45
• Dimension F (mm): 73
• Dimension H (mm): 160
• Dimension M (mm): 11
• Dimension L (mm): 186
• Dimension G (mm): 20.5
• Dimension K (mm): 12.5
• Weight (kg): 0.89
