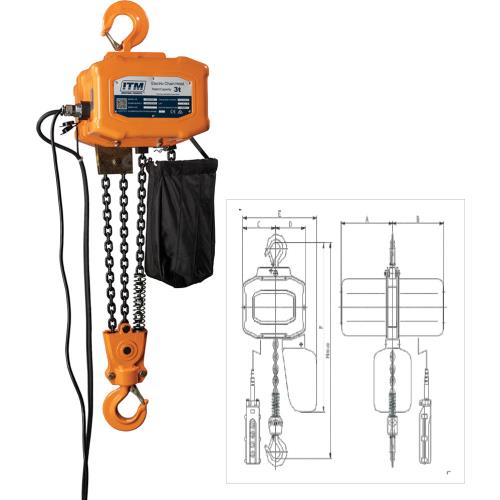

ITM 240V Electric Hoist-3 Ton-6 Meter Lift
Features
• Japanese technology with dual braking system to ensure safe and reliable operation
• Compact and light weight design
• Weight overload limiter for safety
• Thermal overload motor protection
• Single phase, 240V motor
• Upper and lower limit switches to prevent chain runout
• Chain length can be altered by ITM to your required length
• Tested & certified to AS 1418.2
• Test certificate & user manual supplied
• Replacement Chain 7.1mm TM9810-01607-1
Specifications
• Rated Capacity: 3 Tonne
• Standard Lift: 6m
• Running Test Load: 37.5kN
• Motor: 1200w 240v 1P
• No. of Chain Drops: 3
• Chain Type: Grade 80 7.1mm
• Lift Speed: 2m/min
• Net Weight: 73kg
• Extra Weight Per Metre Of Extra Lift: 3.3kg

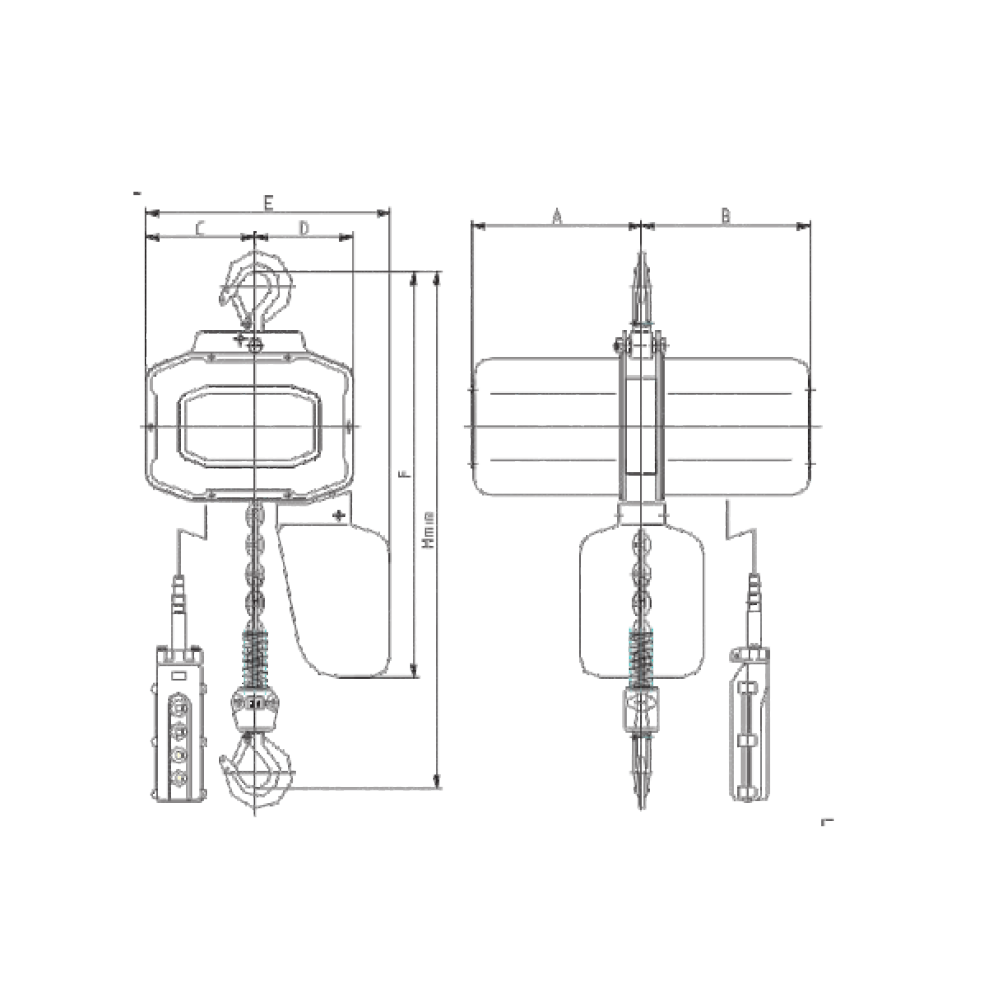

Dimensions (mm)
• A: 245
• B: 245
• C: 124
• D: 176
• E: 350
• F: 620
• H: 710
