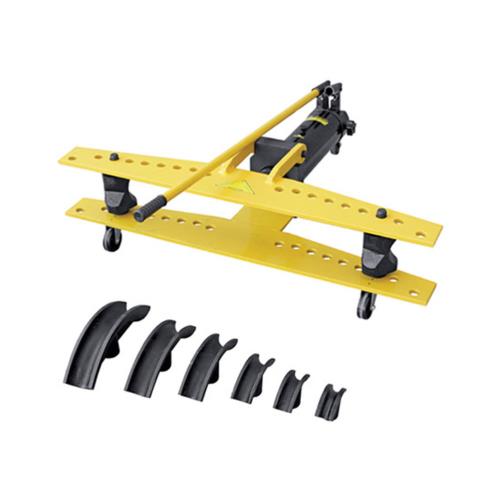

ITM 1/2in To 2in Hydraulic Pipe Bender
FEATURES
• Capable of bending angles from 0° to 90°
• Cold bending, no pre-warming of pipe is required
• Heavy duty castors
• Flip over top frame to easily remove bent pipe
• 2 stage heavy duty hydraulic pumping system
• Longer piston stroke per pump and optimized hand force minimises operator fatique
• Supplied in wooden case
SPECIFICATIONS
• Suitable for Carbon Steel and Wrought Iron Pipe
• Ø1/2in - Ø2in NB pipe capacity
• 1/2in, 3/4in, 1in, 1-1/4in, 1-1/2in, 2in cast steel formers
• 0° to 90° Bending angle
• 13,000kg Force capacity
• 250mm Stroke
