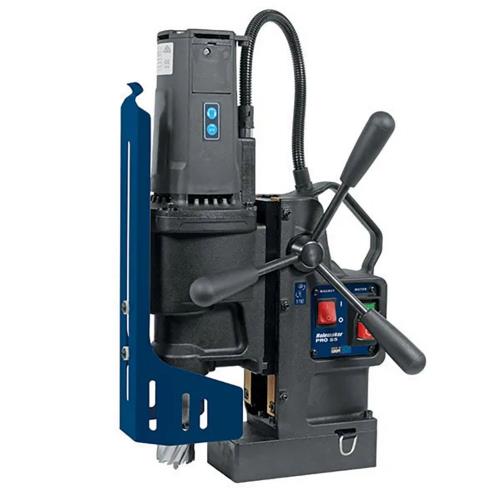

Holemaker PRO55 Magnetic Base Drill

Capacity 55mm Dia. x 75mm DOC

HMPRO55 | Holemaker PRO55 Magnetic Base Drill

FEATURES
New generation machines with the latest technology and design.
• New Rigid Frame Design
• Provides increased life of cutting tools.
• New Extra Large 165mm Stroke
• Enables the use of long tooling such as extension arbors and large depth cutters for drilling box section steel in one pass, twist drills, reamers, taps etc.
• Magnetic Field Shape Control (MFSC)
• Provides maximum holding power on thin materials.
• Lightweight & Powerful
• The new generation Holemaker machines are lighter and more powerful than other brands on the market.

Features:
• European made machine
• Extra large 165mm stroke allowing the use of an optional 13mm twist drill chuck
• Industrial 2-speed gearbox
• Through spindle coolant system, with an external side mounted gravity feed coolant tank
• The feed handles can be placed on either the left or right hand side, for increased versatility
• Smart magnet technology to ensure sufficient magnetic adhesion
• Integrated cutter guard for increased user safety
• Supplied in a blow mould plastic carry case
• Grub screw arbor system, which fastens positively onto Holemaker cutters
• 13mm drill chuck SA70102 available separately

SPECIFICATIONS
• Capacity (Diameter): 55mm
• Capacity (Depth): 75mm
• Capacity (Twist Drills): #2 Morse Taper 18mm
• Motor Power: 1100 Watt
• Input Power: 1200 Watt Single Phase 240V
• Speed: 2 Speed 200 / 400rpm
• Weight: 15.5kg
• Magnetic Dead Lift: 9,900Nm On 25mm Steel Plate
• Stroke: 165mm
• Height (Min. / Max.): 409 / 574mm
