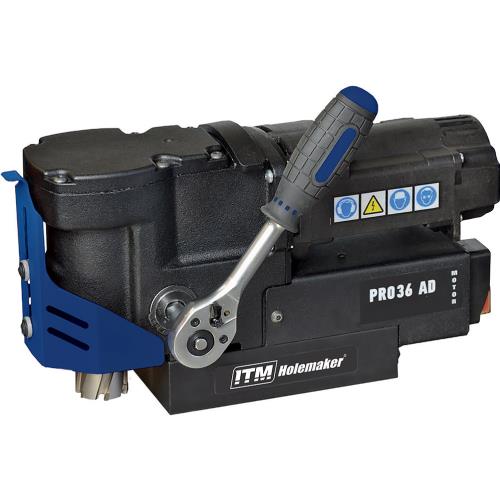

Holemaker PRO36AD Magnetic Base Angle Drill 240V

Capacity 36mm Dia. x 30mm DOC

HMPRO36AD | Holemaker PRO36AD Magnetic Base Angle Drill 240V

Features
The PRO 36 AD is an ultra-low profile mag drill, that fits in the tightest of spots. Perfect solution for any applications in confined spaces, where typical mag drills are too large. A powerful motor and strong electromagnetic base enable drilling of holes up to 36mm diameter to a depth of up to 30mm (1-3/16").
PRO-36 AD accepts both TCT and HSS cutters as well as twist drill drills with 19,05 mm (3/4") Weldon shank.

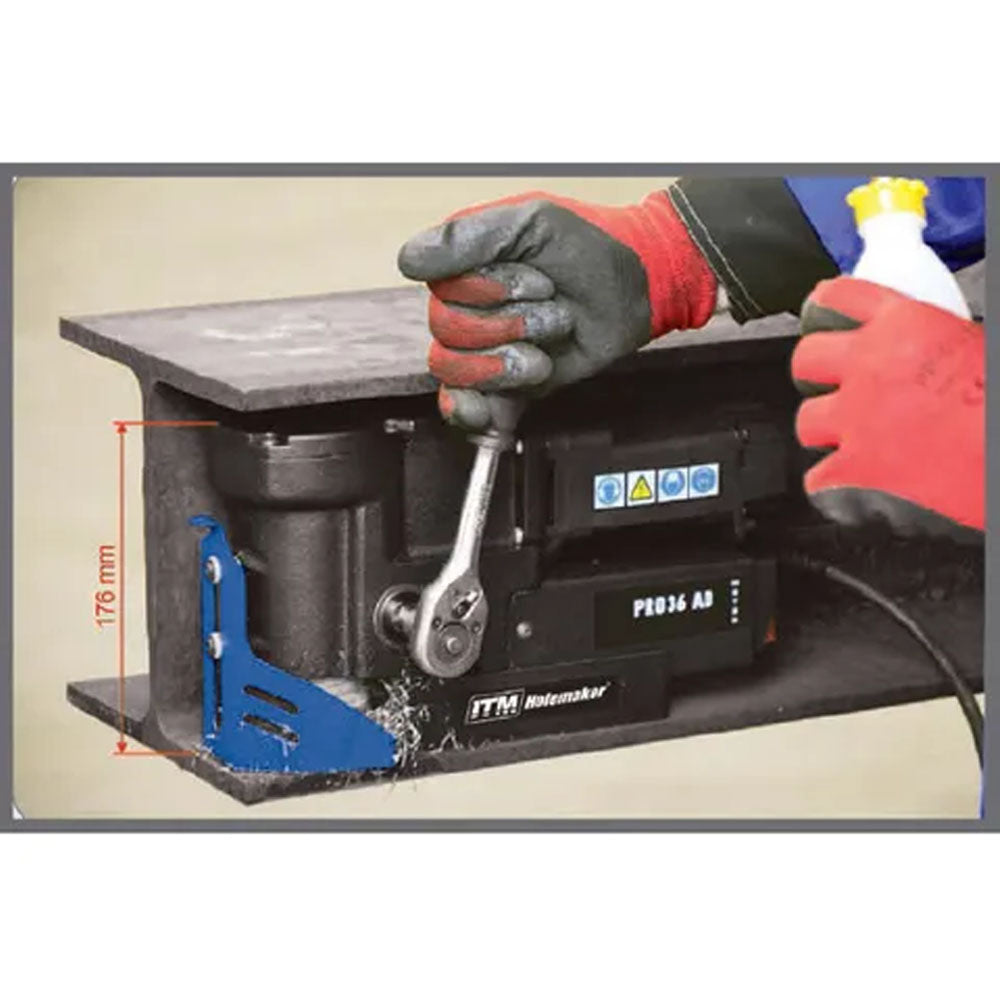

• Ultra-low profile mag drill of 176mm height only.
• Extremely low weight of just 9.5 kg (21 lbs).
• Milling capacity up to 36 mm (1-7/16”).
• Accepts also twist drills with 19,05 mm (3/4”) Weldon shank.
• Stroke – 39 mm.
• Integrated swarf guard.
• Detachable feed lever (feat. ratchet) can be fixed from either side.
• Lifting handle for easy transportation.
• Cooling with a bottle

Specifications
• Capacity ( Diameter ): 36mm
• Capacity ( Depth ): 30mm
• Capacity ( Twist Drill ): 12mm
• Motor Power: 920 watt
• Input Power: 1000 watt Single Phase 240V
• Speed: 370rpm
• Weight: 9.5kg
• Magnetic Dead Lift: 8900Nm On 25mm Steel Plate
• Stroke: 39mm
• Height: 176mm Constant Working Height
• Through Spindle Coolant System
• Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion
• Comes complete in plastic carry case
