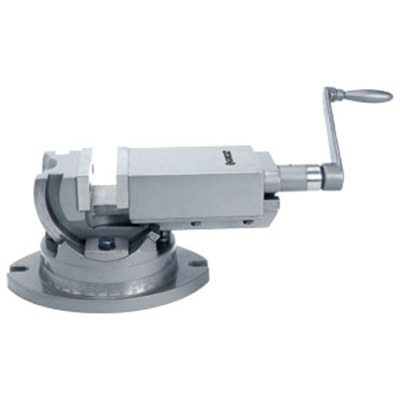

Groz Super Precision Angular Vice 4in / 100mm

Groz Super Precision Angular Vice 4in / 100mm • Angular Machine Vices are ideal for applications where in the workpiece requires machining at an angle. • Angular adjustment is achieved via the angular slide that can be set to any desired angle 45° on either sides. • Additionally the fully graduated 360° swivel base allows the vice to be set at any angle along the vertical axis. • These vices are manufactured from close grained hi tensile seasoned cast iron with fully hardened and ground tool steel jaws. • Ergonomically designed all steel handle allows for stress free operation. It is assembled on the spindle crank with a spring loaded mechanism providing positive grip. • Use of hi tensile grade 10.8 fasteners provides strength and rigidity to these vices. • Relief in clamp seat ensures complete surface contact as against a line contact between the "Hold Down" clamp and movable slide, thereby providing firm locking at any desired by angle. • A milled slot in the vice base helps in accurate location of the vice on the machine table using rectangular locating nuts. • "Hold Down" slots allow for secure clamping of the vice on the machine table. Jaw Width: 4 inch (100mm) Jaw Opening: 4 inch (100mm) Jaw Depth: 1-1/2 inch (38mm)
