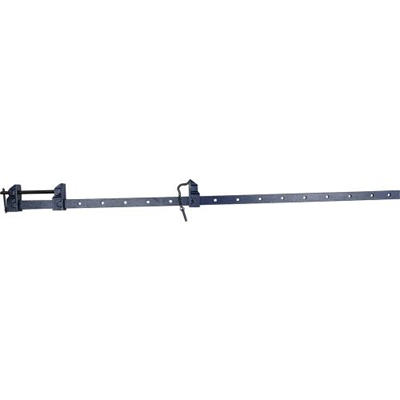

Groz Sash Clamp, Rectangular Section,1200mm Long 1050mm Cap.
• Bar cramps are especially useful for clamping large section workpieces during fabrication, gluing in joinery, carpentry and boat building.
• The bars are made from drawn steel with a section of 32mm x 6mm. Malleable iron head and slides provide rigidity and strength even under heavy tension. Both head and slide have a flat bottom allowing the bar to stand upright without support.
• The head is fitted square to the bar with 1.5° to 2° taper for true parallel clamping action.
• Main screw and handle are made from high-grade steel and have a blackened finish for increased resistance to corrosion.
• The screw has rolled Acme threads that impart extra strength and are wear resistant.
Specification
• Bar Length: 1200mm
• Clamp Capacity: 1050mm
• Throat Depth: 50mm (2in)
• Width of Clamp Face: 30mm (1-3/16”)
