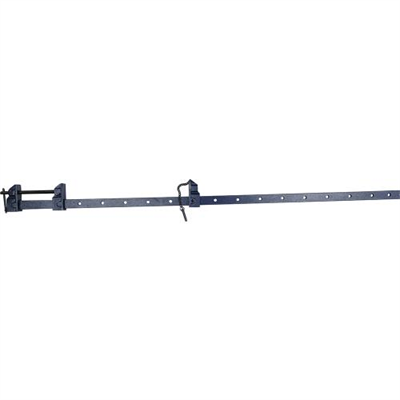

Groz Sash Bar Clamp 24in (600mm) / 450mm Capacity
These Bar Cramps are especially useful for clamping large section workpieces during fabrication, gluing in joinery, carpentry and boat building.
Features:
• The bars are made from drawn steel with a section of 1.1/4" x 1/4" (32 mm x 6 mm).
• Malleable iron head and slides provide rigidity and strength even under heavy tension.
• Both head and slide have a flat bottom allowing the bar to stand upright without support.
• The head is fitted square to the bar with 1.1/2° - 2° taper for true parallel clamping action
• Main screw and handle are made from high-grade steel and have a blackened finish for increased resistance to corrosion.
• The screw has rolled Acme threads that impart extra strength and are wear resistant
Specifications:
• Throat Depth: 50mm
• Width of Clamp Face: 30mm
• Bar Length: 600mm
• Capacity: 450mm
