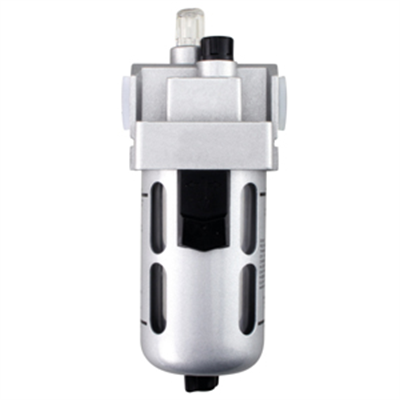

Groz 3/8in BSP Oil Mist Lubricator 106CFM / 3000LPM
GZ60202 - GROZ Air Lubricator
Air Lubricators are used to feed lubricants to pneumatic equipment. These maintain a constant oil-to-air density over a wide range of flow.
The Groz L1 series Lubricators are Fog/Micro Mist type, upto 15m / 50ft pipe runs.
These have a Die Cast Aluminium Head, polycarbonate bowl with a steel bowl guard.
The head is fitted with Oil drop indicator, Oil drop controller & Oil filling plug
WETTED COMPONENTS:
Aluminium, Bronze, Steel, Acetal, Polycarbonate, Stainless Steel & Nitrile
Note: Designed for best performance with 32 grade oil.
L14 Type:
INTERMEDIATE
Max flow rate: 106 CFM / 3000 LPM
Min flow rate: 1.41 CFM / 40 LPM
Bayonet type steel bowl guard
CONFORMS TO ISO 6301-1
WARNING: Polycarbonate bowls may get damaged and possibly fail if exposed to synthetic oils, thinner, solvents, trichloroethylene, kerosene or other aromatic hydrocarbons.
