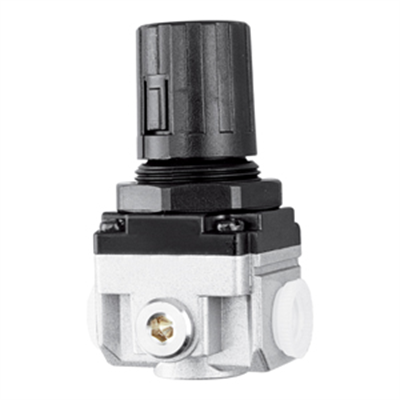

Groz 1/4in BSP Regulator 21CFM / 600LPM
GZ60011 - GROZ Air Regulator
One of the most commonly used air line accessories, Regulators are used to maintain a steady outlet pressure, unaffected by variations/fluctuations in the inlet pressure.
Regulators step down the air line pressure & can be set at any desired pressure below the inlet air pressure.
Aluminum die cast, these are designed with a Non Raising “Press to Lock” adjusting knob for locking at any set pressure.
Regulators work on a Diaphragm operated, relieving type mechanism with pressure compensated by balanced poppet. These can be installed in any position & need not be vertically mounted
WETTED COMPONENTS:
Aluminium, Brass, Steel, Acetal, Stainless Steel & Nitrile
R13 Type:
MINIATURE COMPLETE WITH 42MM GAUGE
Max flow rate: 21 CFM / 600 LPM
Max Pressure: 220 PSI/ 15 Bar
CONFORMS TO ISO 6953-1
