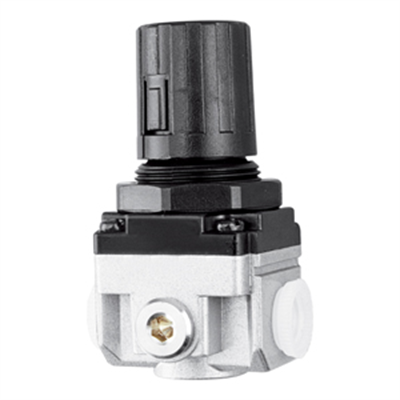

Groz 1/2in BSP Regulator 140CFM / 4000LPM
GZ60014 - GROZ Air Regulator
One of the most commonly used air line accessories, Regulators are used to maintain a steady outlet pressure, unaffected by variations/fluctuations in the inlet pressure.
Regulators step down the air line pressure & can be set at any desired pressure below the inlet air pressure.
Aluminum die cast, these are designed with a Non Raising “Press to Lock” adjusting knob for locking at any set pressure.
Regulators work on a Diaphragm operated, relieving type mechanism with pressure compensated by balanced poppet. These can be installed in any position & need not be vertically mounted
WETTED COMPONENTS:
Aluminium, Brass, Steel, Acetal, Stainless Steel & Nitrile
R15 Type:
STANDARD COMPLETE WITH 42MM GAUGE
Max flow rate: 140 CFM / 4000 LPM
In-built Venturi for Flow Compensation
CONFORMS TO ISO 6953-1
