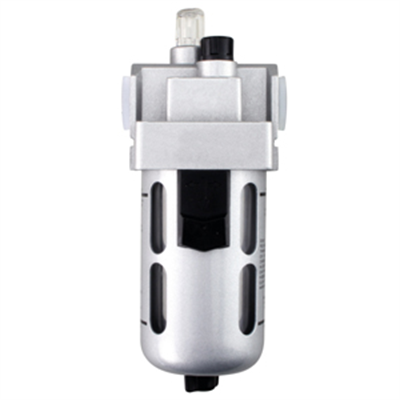

Groz 1/2in BSP Oil Mist Lubricator 200CFM / 5650LPM
GZ60203 - GROZ Air Lubricator
Air Lubricators are used to feed lubricants to pneumatic equipment. These maintain a constant oil-to-air density over a wide range of flow.
The Groz L1 series Lubricators are Fog/Micro Mist type, upto 15m / 50ft pipe runs.
These have a Die Cast Aluminium Head, polycarbonate bowl with a steel bowl guard.
The head is fitted with Oil drop indicator, Oil drop controller & Oil filling plug
WETTED COMPONENTS:
Aluminium, Bronze, Steel, Acetal, Polycarbonate, Stainless Steel & Nitrile
Note: Designed for best performance with 32 grade oil.
L15 Type:
STANDARD
Max flow rate: 200 CFM / 5650 LPM
Min flow rate: 1.59 CFM / 45 LPM
Bayonet type steel bowl guard
CONFORMS TO ISO 6301-1
WARNING: Polycarbonate bowls may get damaged and possibly fail if exposed to synthetic oils, thinner, solvents, trichloroethylene, kerosene or other aromatic hydrocarbons.
