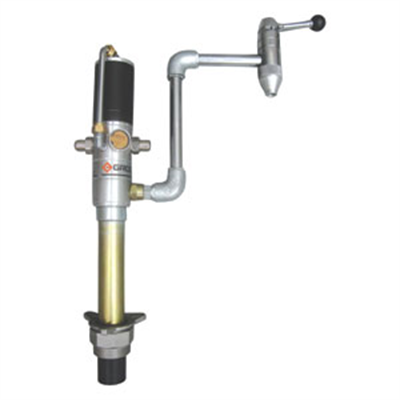

Air Operated Oil Dispensing Kit**
GZ45350 - AIR OPERATED OIL DISPENSING KIT
All metal construction, fully CNC machined with hardened wear resistant moving parts.
Reciprocating piston operated 2-1/2” (63 mm) dia.
Air Motor Stub Pumps are supplied with Non Return Valve threaded 1” (F) for use on the bottom of the Suction Tube.
Pumps are single acting with discharge up to 14 LPM
Ideal for use with medium to high viscosity oils (up to 130 SAE)
Air Consumption: 230 LPM
Pump Specifications:
Working Pressure: 2 - 10 BAR (30 - 150 PSI)
Max. Air Pressure: 10 BAR (150 PSI)
Air Inlet Connection: ¼” BSP (F) / ¼” NPT (F)
Pump Outlet Connection: ½” BSP (F) / ½” NPT (F)
Pump Inlet on Stub Pumps only: 1” BSP (F) / 1” NPT (F)
Noise Level: 81 db
*Accessory (Not Included): GZ44303 Suction Tube - 3 Piece, Length: 350mm, 670mm & 1000mm
